Rail-Mounted Gantry Crane (RMG)

Unlock Peak Efficiency & Space Optimization with Advanced Rail-Mounted Gantry Cranes (RMG Cranes)

The YAOUCRANE Rail-Mounted Gantry Crane is a kind of lifting equipment which traveling on track/rail, mainly used for container loading,unloading and handling  in ntermodal Transportation.Its structure includes the gantry frame,electrical system, gantry traveling machanism,trolley traveling machanism and  lifting machanism.It's an indispensable equipment for container terminals.

►Rail-mounted Gantry Crane Catagry:

Specifications	Upper Rail-mounted Container  Gantry Crane	General Rail-mounted Container  Gantry Crane
Rated Load	40.5t-60t	30-50t
Span	20-35m	20-35m
Lifting Height	13-20m （1 over 5）	13-20m
Working Duty	A7	A7
Trolley Rotation Degree	270°	180°
Container Size	20' 40' 45'	20' 40' 45'
Hoisting speed	10/18m/min (full/empty)	0-10m/min
Trolley	40m/min	3.4-34m/min
Gantry	45m/min	2.9-29m/min
Power	260kw	260kw
Power Supplier	3-phase, AC 50Hz 380V	3-phase, AC 50Hz 380V

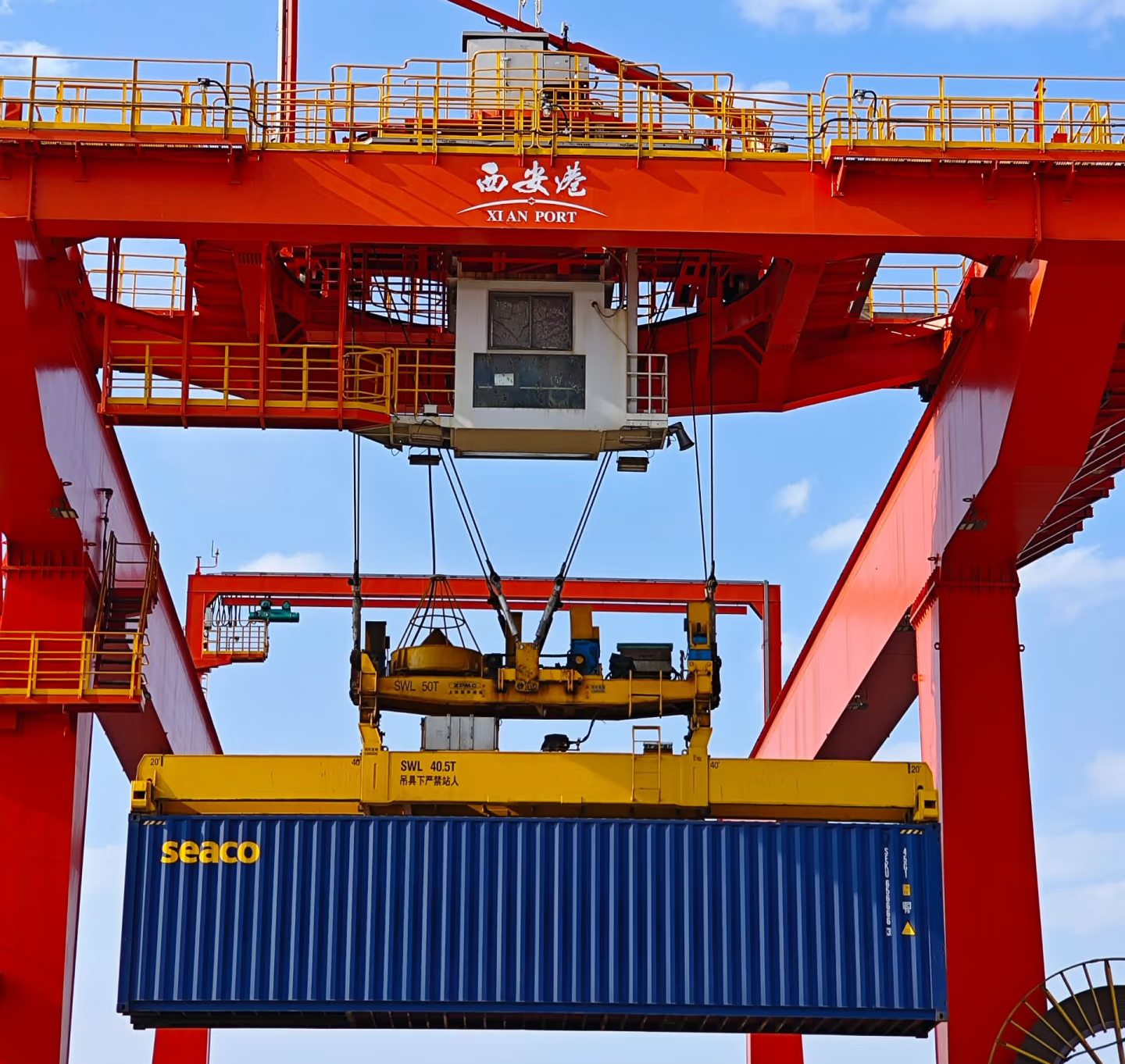

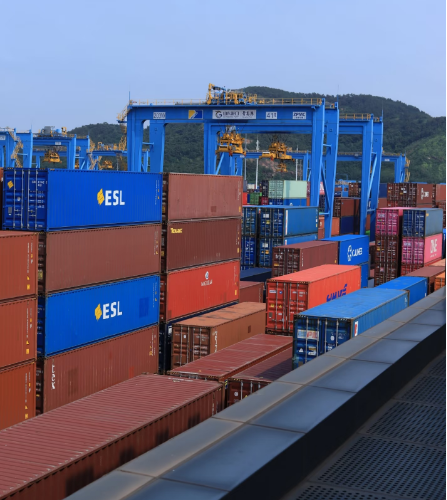

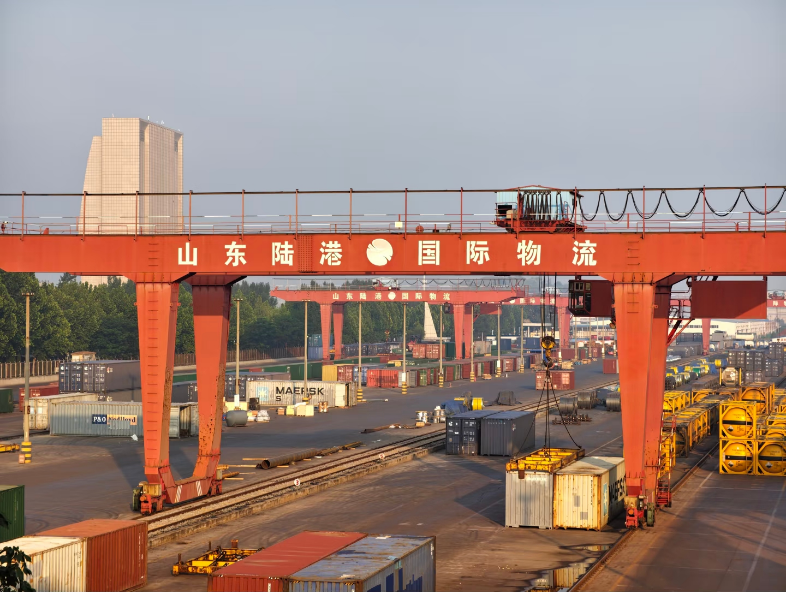

Picture for reference

►Revolutionize Your Container & Cargo Handling with Rail-Mounted Gantry Cranes

In the demanding environments of modern ports, intermodal terminals, and large-scale logistics hubs, maximizing throughput and optimizing valuable yard space is paramount. Rail-Mounted Gantry Cranes (RMG Cranes) are the engineered solution for high-volume, efficient, and reliable horizontal transport and stacking of containers and heavy cargo. Running on fixed ground rails, these powerful gantry cranes offer unparalleled precision, automation capabilities, and operational efficiency, making them the cornerstone of a streamlined material handling operation. YAOUCRANE designs and delivers cutting-edge RMG Crane systems tailored to your specific operational needs and challenges.

►Why Choose YAOUCRANE Rail-Mounted Gantry Cranes?
Investing in an RMG Crane system from YAOUCRANE translates directly into tangible operational and financial benefits:

1) Unmatched Efficiency & Productivity
High-Speed Operation: Optimized travel, hoisting, and trolley traverse speeds ensure rapid container/cargo movement.
Continuous Operation: Designed for 24/7 operation in harsh environments, minimizing downtime.
Reduced Cycle Times: Precise positioning and smooth handling significantly accelerate loading/unloading and stacking processes.

2) Superior Space Utilization
Compact Stacking: Stack containers/cargo multiple rows wide and high within the crane's rail span, maximizing yard density.
Eliminate Aisle Space: Unlike rubber-tired gantries (RTGs), RMGs operate on fixed rails, freeing up valuable ground space for additional storage or traffic flow.

3) Enhanced Precision & Reliability
Stable Rail Guidance: Fixed tracks provide exceptional stability and precise positioning, crucial for safe and efficient handling, especially in automated systems.
Robust Construction: Engineered with high-quality materials and components for long-term durability and minimal maintenance requirements.
Consistent Performance: Deliver reliable operation day in and day out, regardless of weather conditions.
4) Advanced Automation & Integration
Seamless Automation: Our RMG Cranes are ideal for full or semi-automation, integrating seamlessly with Terminal Operating Systems (TOS) and other equipment for optimized workflows.
Operator Assistance Systems: Features like automatic steering, positioning aids, and collision avoidance enhance safety and operator efficiency.
Data-Driven Insights: Equipped for remote monitoring and data collection to optimize performance and predictive maintenance.
5) Operational Cost Savings
Reduced Labor Costs: Automation significantly reduces reliance on multiple operators per crane.
Lower Energy Consumption: Electric-powered Rail Mounted Crane.

►Ideal Applications for Our Rail-Mounted Gantry Cranes
YAOUCRANE RMG Cranes are engineered to excel in diverse high-capacity handling environments:
 1) Container Terminals (Ports & Inland)
Efficient stacking and transfer of ISO containers between yard blocks, trucks, and rail cars.
Backbone of automated or semi-automated container yards.


2) Intermodal Rail Terminals
Loading and unloading containers directly to/from rail flatcars within the terminal.
Organizing and stacking containers for efficient train makeup.

3) Large-Scale Logistics Centers & Distribution Hubs
Handling heavy unit loads, project cargo, or specialized containers within expansive storage yards.
Optimizing storage density for bulk materials or large items.
4) Heavy Industry & Manufacturing Facilities
Moving large, heavy components or materials between production stages or storage areas.

►Engineered for Performance: YAOUCRANE RMG Crane Capabilities
We don't offer one-size-fits-all solutions. Our Rail-Mounted Gantry Cranes are designed and built to your exact specifications:
1) Key Technical Parameters (Examples - Customize for your products):
Lifting Capacity: From 30 tons to 80 tons, handling 20ft, 40ft, 45ft, high-cube, and even specialized containers/cargo.
Span: Custom spans from 35 meters to 55 meters to cover your required stacking width and rail tracks.
Lifting Height: Up to 18 meters "over rail" to achieve your desired stacking height (e.g., 1-over-5, 1-over-6).
Power Supply: Electric (catenary or cable reel) for clean, efficient operation. (Or specify if Diesel-Electric/Hybrid).
Control Systems: State-of-the-art cabin controls, remote control options, or full integration for automated operation.
Automation Readiness: Designed from the ground up for easy integration with automation systems (AGVs, ASCs, TOS).
2) Customization & Engineering Expertise
Tailored designs to fit unique site layouts, operational flows, and specific cargo requirements.
Integration of specialized spreaders (container, bulk, coil, etc.).
Advanced safety systems (anti-sway, collision avoidance, wind speed monitoring).
Comprehensive project management, installation, commissioning, and lifecycle support.
